Edic Saturn

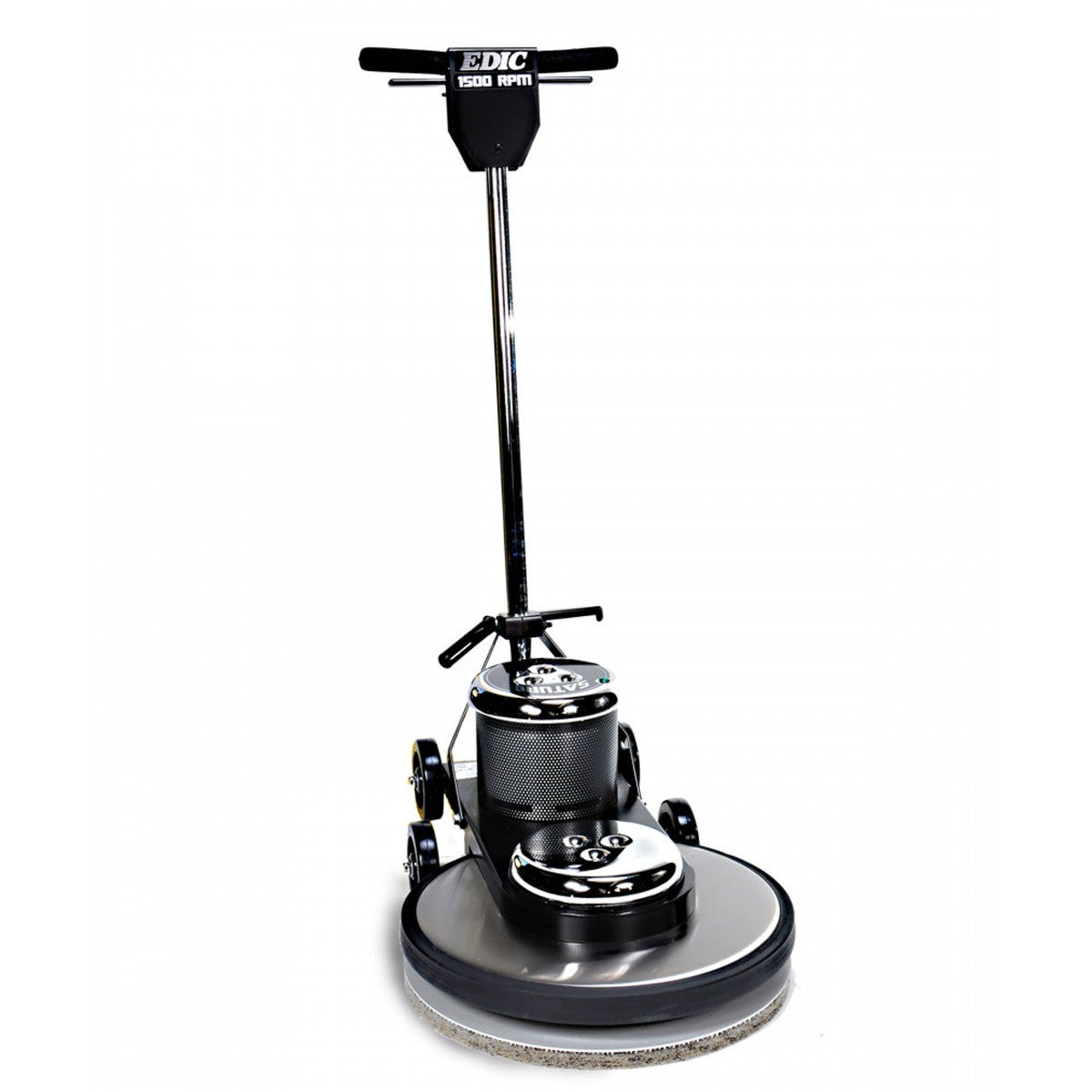

Polisseuse haute vitesse, Edic Saturn 20HS1500-SS
Polisseuse haute vitesse, Edic Saturn 20HS1500-SS
Prix habituel
$2,375.00 CAD
Prix habituel
Prix soldé
$2,375.00 CAD
Prix unitaire
par
Impossible de charger la disponibilité du service de retrait
Pièces disponibles

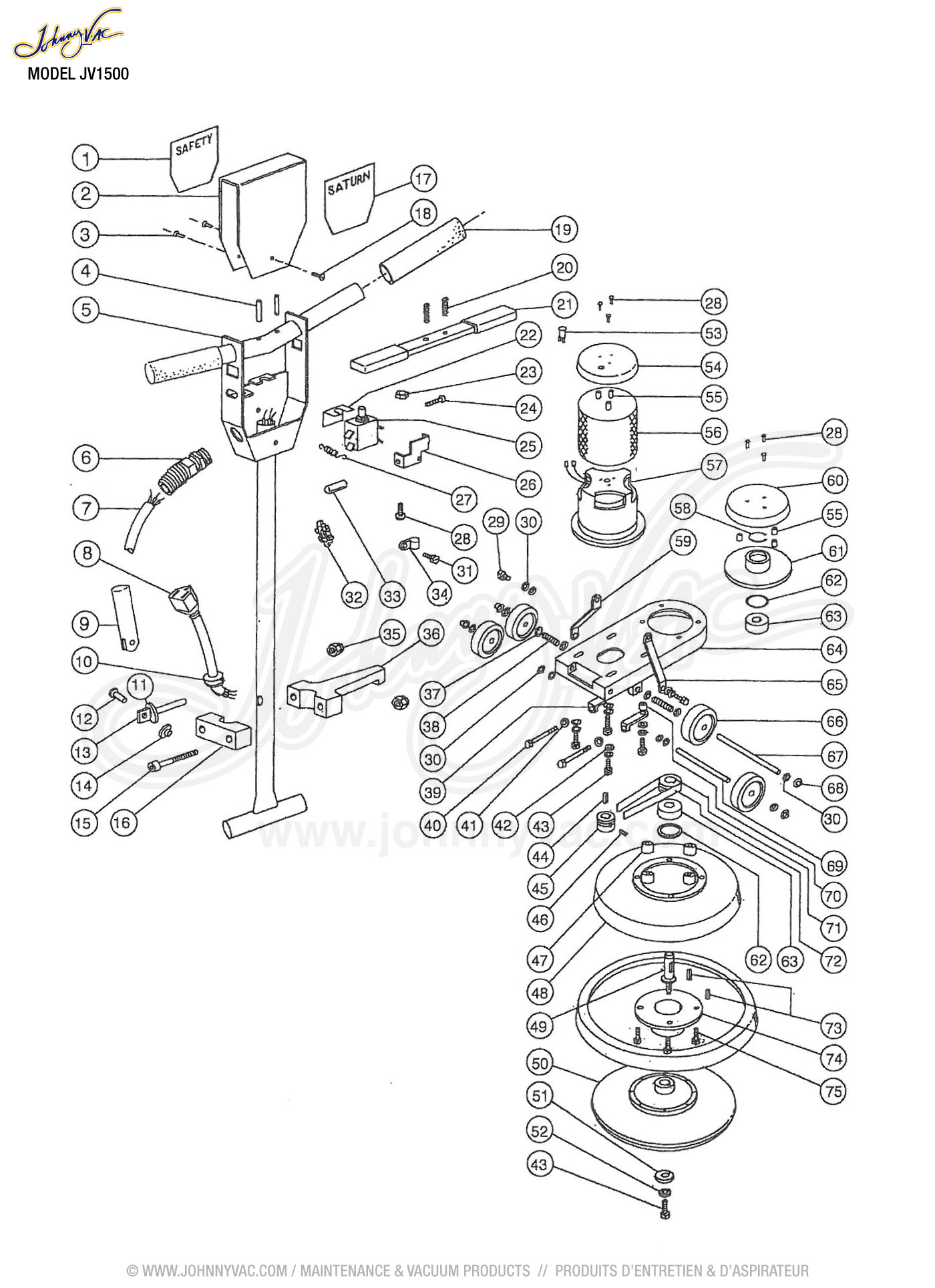

Liste de pièces de remplacement
Liste des pièces de remplacement
| # | Description | Sku | JV Sku |
|---|---|---|---|
| 1 | LABEL, SAFETY, FLOORMACHINE | H11493 | |
| 2 | SWITCHBOX COVER, BLUE | D11496 | |
| 2 | SWITCHBOX COVER, BLACK | D11496B | |
| 3 | *** VIS 10.32 X 3/8 POUR ED500BX COM SPEC | C11529 | EDC11529 |
| 4 | *** TIGE DE ROULEAU 1/8 x 1-3/4 EDIC COM SPEC | C00306 | EDC00306 |
| 5 | HANDLE, CHROME, FLOORMACHNE | D11479 | |
| 6 | *** RESSORT DE RETENUE CORDE ELECT EDIC | B11504 | EDB11504 |
| 7 | *** CORDE ELECTRIQUE AVEC PLUG EDIC COM SPEC | B11487 | EDB11487 |
| 8 | CORD, HANDLE, 14/3, SJTW, | B11513 | |
| 9 | POIGNEE DE BARRURE EDIC POLISSEUSE | D11497 | EDD11497 |
| 10 | **POIGNEÉ DE SÉCURITÉ COM.SPÉCIAL50% FRAIS RETOUR*** | B10734 | EDB10734 |
| 11 | *** WASHER RAINURE ZINC EDIC POLISSEUSE CMD SPEC | C00259 | EDC00259 |
| 12 | TIGE DE LA POIGNEE EDIC POLISSEUSE | C11537 | EDC11537 |
| 13 | KIT ECROU 3/8" 16X4 EDIC | C11536 | EDC11536 |
| 14 | *** CAP PUSH-ON ECROU 5/16" EDIC CMD SPEC | C11538 | EDC11538 |
| 15 | SOCKET CAP SCREW, 3/8-16, | C11502 | |
| 16 | CORD HOOK CLAMP | D11507-2 | |
| 17 | LABEL, SATURN | H11492 | |
| 18 | SCREW, 10-32 X 1/4, | C11528 | |
| 19 | POIGNEE PLAST EDIC JV20DS. | K11498 | EDK11498 |
| 20 | *** RESSORT DÉCLANCHEUR EDIC COM SPEC | D11523 | EDD11523 |
| 21 | LEVER GRIP, TRIGGER, BLACK | K11520 | |
| 22 | SWITCH INSULATION, | B11518 | |
| 23 | HEX NUT, 10-32, SS | C00264 | |
| 24 | SCREW, 10-32 X 1", SS, | C11491 | |
| 25 | SWITCH, SPST, PUSHBUTTON | B11465-1 | |
| 26 | LOCKOUT BRACKET | D11494 | |
| 27 | SPRING, LOCKOUT | D11524 | |
| 28 | *** VIS 10-32 x 5/8'' PHILLIPS EDIC COMM SPEC | C90007 | EDC90007 |
| 29 | HEX TAP BOLT, 3/8 X 1 1/4, | C11569 | |
| 30 | *** RONDELLE, PLAT 0.375'' EDIC FIVE STAR COMM SPEC | C00252 | EDC00252 |
| 31 | SCREW, 10/32 X 3/8 GROUND | C00284 | |
| 32 | STRAIN RELIEF NUT, METAL | B11505 | |
| 33 | LEVER GRIP, TRIGGER, BLACK | K11520 | |
| 34 | CABLE CLAMP, NYLON, 7/16, | B00187 | |
| 35 | *** BARRURE EDIC 3/8-16 COM SPEC | C11558 | EDC11558 |
| 36 | CORD HOOK BODY | D11507 | |
| 37 | *** WASHER POLISSEUSE 20" EDIC COM SPEC | C11559 | EDC11559 |
| 38 | SPACER, 1/2ID X 1/4THICK, | K11561 | |
| 39 | TENSION ADJUSTMENT BRKT, | D11542 | |
| 40 | BOLT, 1/4-20 X 3 1/2, | C00319 | |
| 41 | HEX NUT, 1/4-20, (O) | C00261 | |
| 42 | LOCKWASHER, 3/8", SPLIT | C00250 | |
| 43 | HEX TAP BOLT, 3/8 X 3/4, | C11571 | |
| 44 | KEY, 3/16 X 3/16 X .942 | C11555 | |
| 45 | *** POULIE POUR JV1500 BURNISHER 1500 RPM COM SPEC | D11532 | EDD11532 |
| 46 | SET SCREW, 5/16-18 X 3/8, | C11567 | |
| 47 | *** ÉSPACEUR DE BASE EDIC COM SPEC | K11521 | EDK11521 |
| 48 | BRUSHCOVER, 20", BLUE | D11486 | |
| 48 | BRUSHCOVER, 20", STAINLESS | D11486-SS | |
| 49 | SHAFT, 4.11", STEEL | D11534 | |
| 50 | *** SUPPORT A TAMPON 20" BARRURE FLEXIBLE EDIC | 2004BR | ED2004BR |
| 51 | WASHER, 1.6" OD, STEEL | D11535 | |
| 52 | LOCKWASHER, 5/16", SPLIT | C00251 | |
| 53 | INDICATOR LIGHT, GREEN, | B02196 | |
| 54 | DRIP COVER, BLUE | D11490 | |
| 54 | DRIP COVER, CHROME | D11490C | |
| 55 | SPACER, 3/16ID X 3/8H X | K11517 | |
| 56 | PIÈCE EN COMMANDE SPÉCIALE | D11546 | |
| 57 | ***MOTEUR POLISSEUSE 17'' 2000RPM EDIC | G11557 | MOED11557 |
| 58 | RETAINING RING, EXTERNAL, | C11574 | |
| 59 | HANDLE BRACE, RIGHT, BLACK, | D11544 | |
| 60 | *** COUVERCLE BROSSE POLISSEUSE 17" METAL NOIR COM SPEC | D11490B | EDD11490 |
| 60 | DRIP COVER, CHROME | D11490C | |
| 61 | BEARING PLATE, UPPER, | D11565 | |
| 62 | WAVEWASHER, 3 1/8"OD X | C11556 | |
| 63 | BEARING, SHAFT, HI-SPEED | G11531 | |
| 64 | FRAME, MOTOR, HI-SPEED, | D11526 | |
| 65 | HANDLE BRACE, LEFT, SLOT, | D11543 | |
| 66 | WHEEL, 5", FLOORMACHINE | G11489 | |
| 67 | AXEL, WHEEL, HISPEED | D11562 | |
| 68 | *** EDIC NOIX DU CAP COMM. SPEC. | C02305 | EDC02305 |
| 69 | AXLE, HANDLE, HISPEED | D11563 | |
| 70 | SPACER, 1/2 X .50 | K00662-50 | |
| 71 | PULLEY, 3 7/8", W/GROOVES | D11547 | |
| 71 | PULLEY, 3 1/8", 2000RPM | D11533 | |
| 72 | BELT, HI-SPEED | L11530 | |
| 73 | KEY, 3/16 X 3/16 X .942 | C11555 | |
| 74 | BEARING PLATE, LOWER, | D11566 | |
| 75 | HEX BOLT, 5/16-18 X 2 1/2, | C11568 |
